Dismantling BFT Fitness BSE09 Commercial Spinning Bike

Dismantling Spinning Bike Photo.

Do not know Chinese? Don't worry, there is an English version here.
commercial spin bike

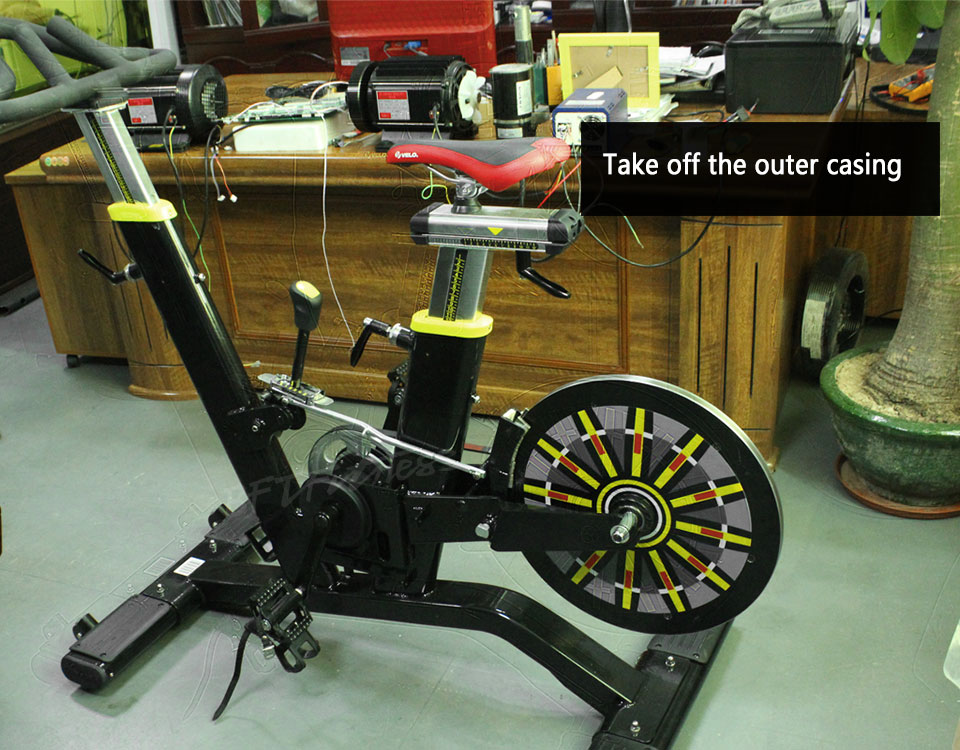

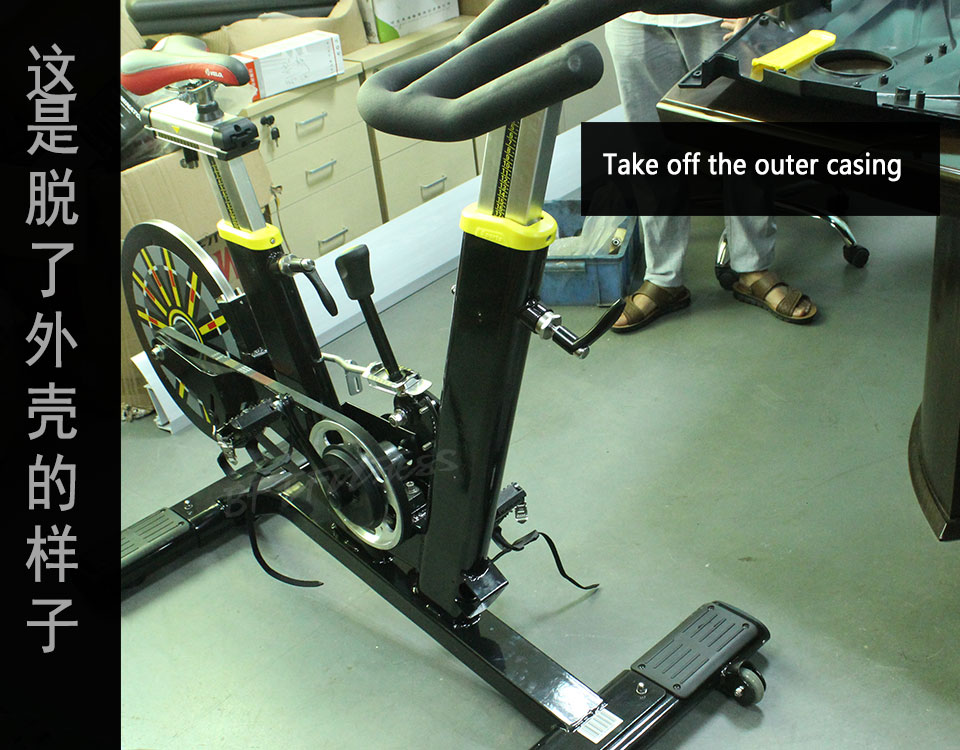

I almost couldn’t recognize the outer shell.

spin bike without sheel

It looks like a nestling without hair.

spin blke

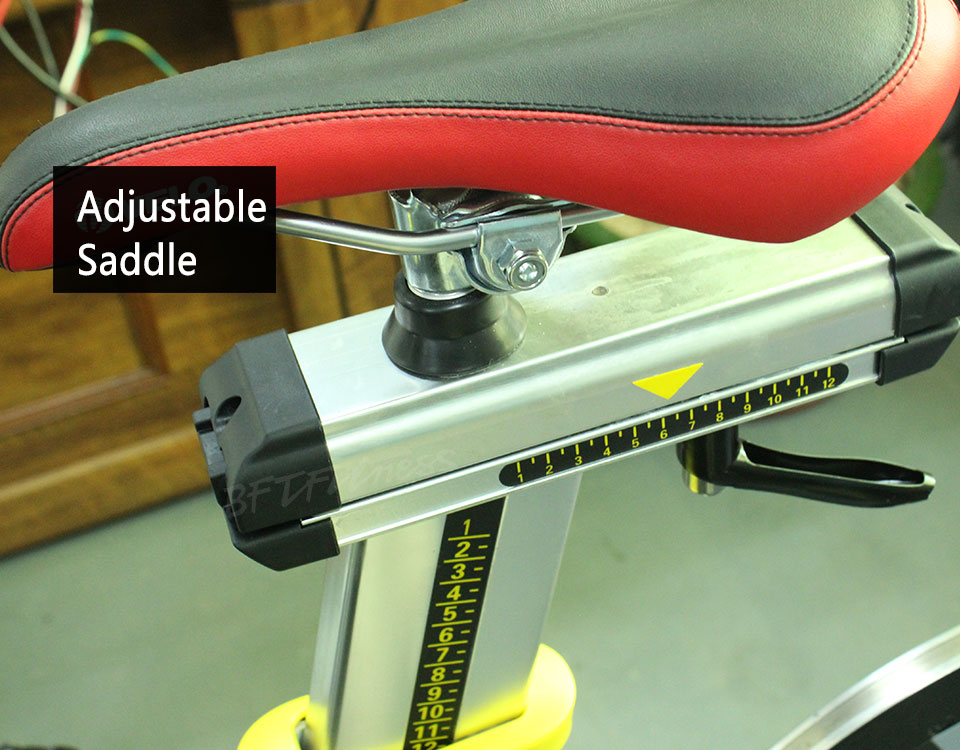

Can adjust up and down and back and forth

saddle

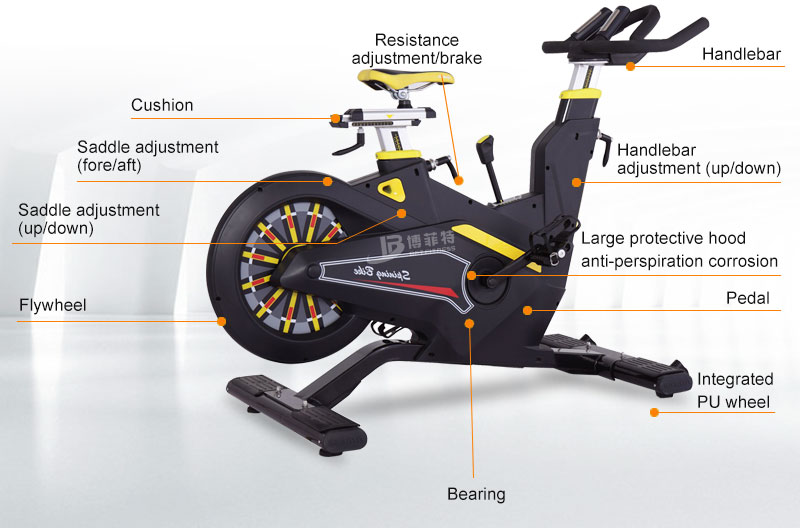

Frame	The main frame is simplified, fashionable, firm and durable, made of flat oval tubes (50*120).

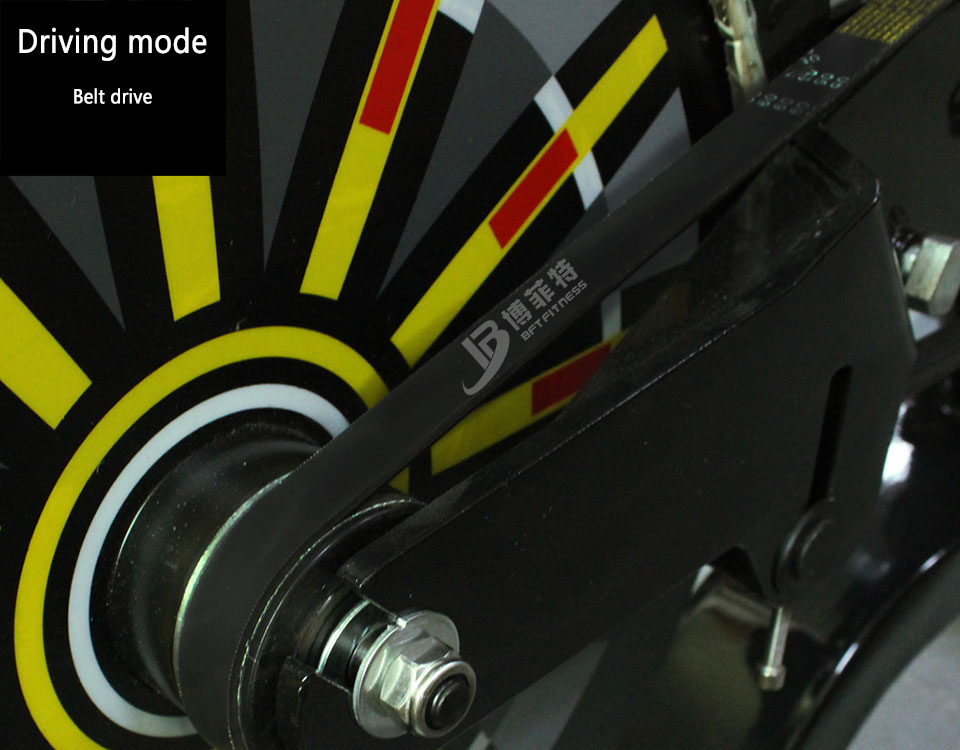

Driving mode	Belt drive/Chain drive

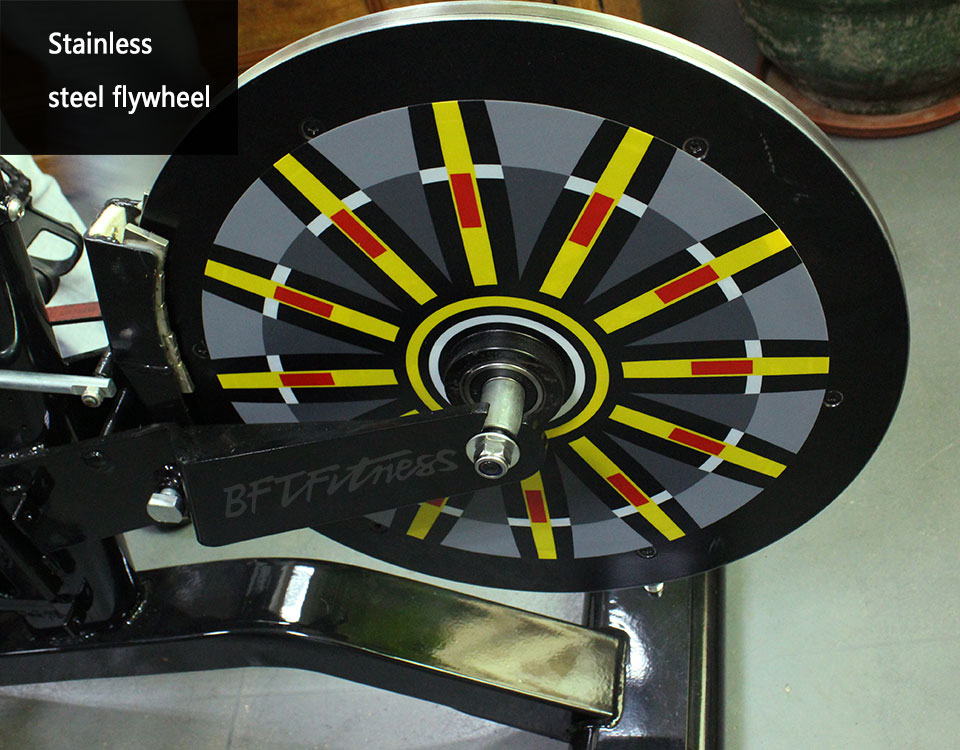

Flywheel	The magnetic control flywheel made of new technique never gets rusty; its perfect smoothness ensures that the loss of brake system can be reduced to a minimum.
Resistance system	Magnetic Resistance System
Resistance adjustment	Adjustment lever (-5-level)
Shaft	Material: quality alloy steel Diameter: 25mm
Bearing block assembly	Removable bearing assembly
Handlebar	Surface: Dip molded PVC (pitted surface/smooth surface) Color: Red/Black
Saddle	Taiwan brand
Bearing	Top heavy-duty bearing in China.
Biomechanical feature	It’s suitable for all fitness levels and users with any body shapes (from females with somatotype 5% to males with somatotype 95%)

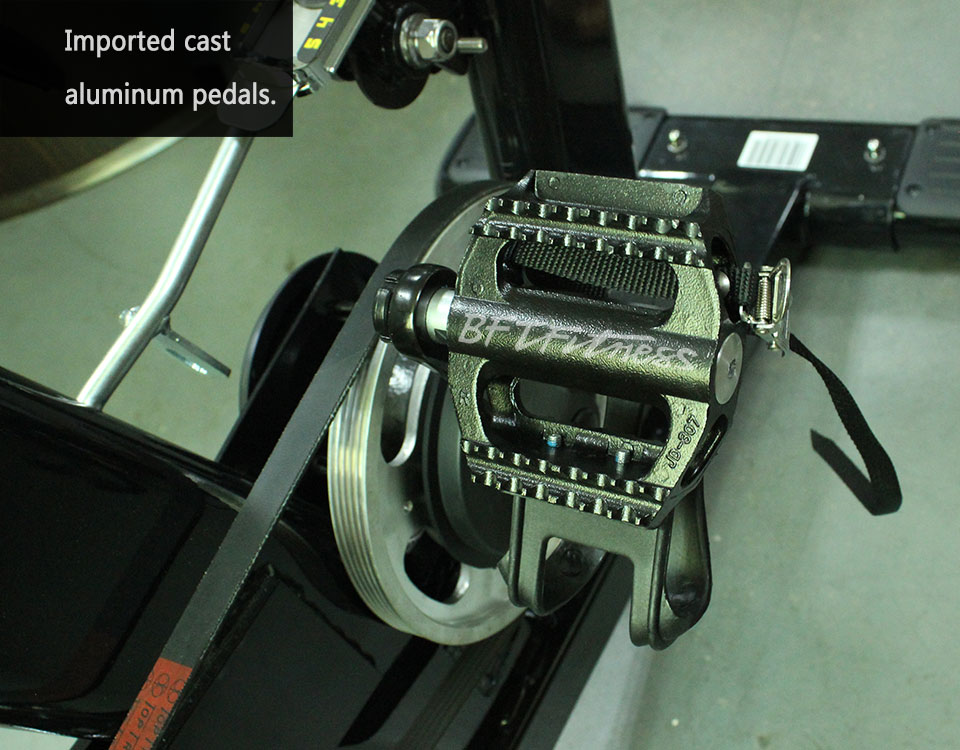

Pedal	Imported cast aluminum pedals.
Saddle post and Handlebar post	Material: quality aluminum alloy
Touch screen	Resistance Level, Distance, Speed, Calories, Workouts (Riding scenes), Music, Videos, USB files
Intelligent features	QR Code scanning after singing into WeChat; Member Registration and login; Cloud storage; Performance ranking of members; Riding scenes.
Transport wheel	Integrated PU wheel.
Labels	Material: PVC
Water bottle holder	N/A
Power source	External power supply; AC 220V±10% (50Hz/60Hz)
Power cord	16A AC 250V
Frame color	Black (standard) Matt black (optional)
Max user weight	150 KG
Handlebar adjustment range (up/down)	160 MM
Max handlebar height	1100 MM (above the floor)
Saddle adjustment range (up/down)	190 MM
Saddle adjustment range (fore/aft)	110 MM
Max saddle height	1170 MM (above the floor)
Unit dimensions	1665mm×705mm×1445mm
